3/4�� Bluetooth-compatible Single-Zone Smart Water Timer Alexa Google Control Rain Delay IPX5 Garden Faucet Irrigation Controller

��Bluetooth Smart Water Timer offers voice control with Alexa/Google Assistant, 10 custom programs, rain delay, and app alerts. With IPX5 waterproofing and wide compatibility, it’s ideal for home gardens, lawns, and greenhouses. Perfect for smart, hands-free irrigation.

��� Smart Voice Control & Family Sharing: Easily control your watering schedule with voice commands – compatible with Alexa and Google Assistant for seamless smart home integration. Share device access with family members via the app for collaborative garden care.

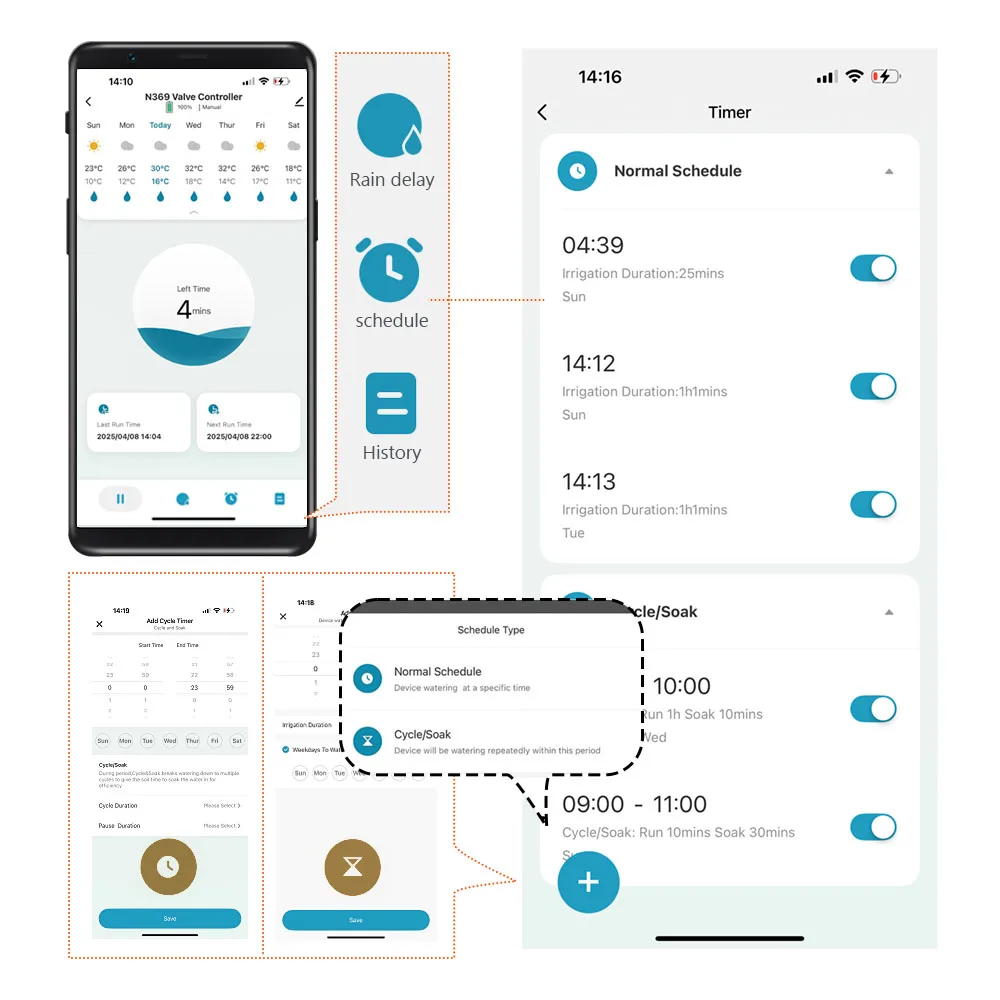

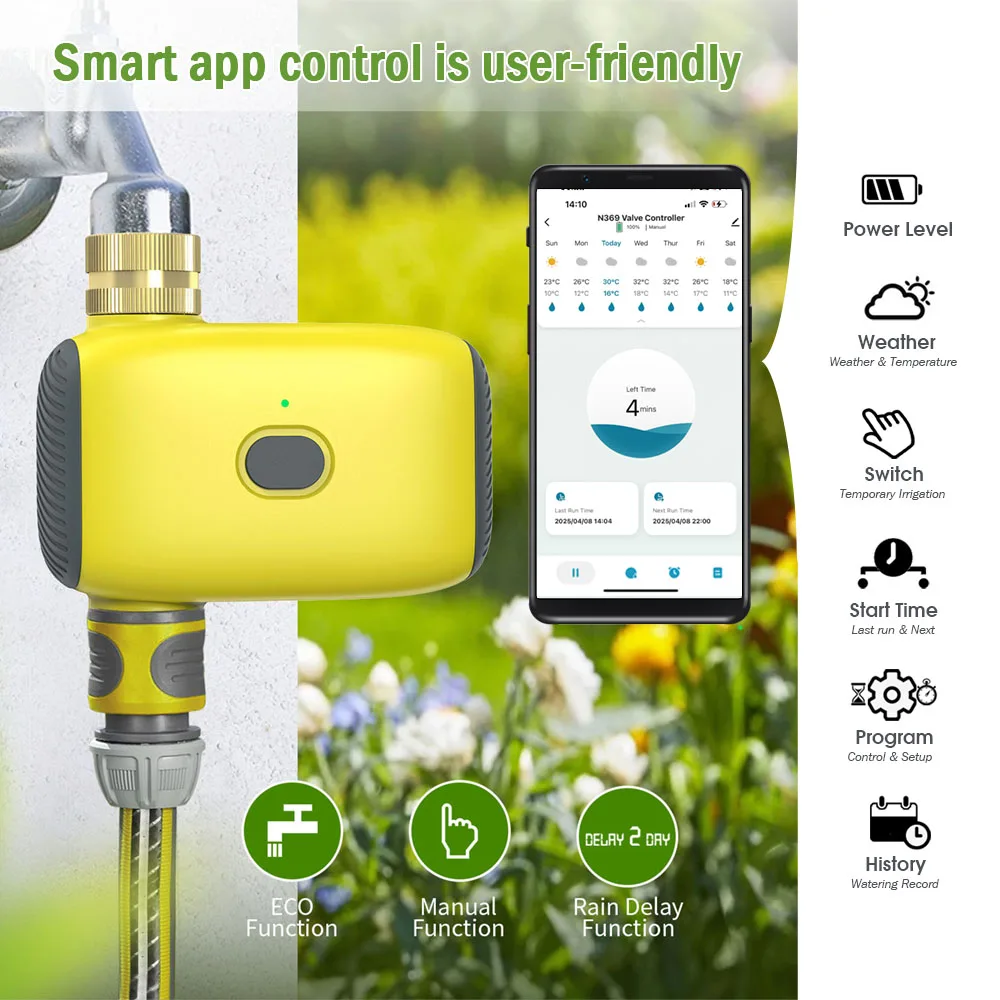

��� User-Friendly APP Interface: The user-friendly app displays real-time battery status, 7-day weather forecast, and temperature trends. You can also view the last and next watering times at a glance for effortless monitoring and scheduling.

��� Versatile Watering Modes: Supports up to 10 customized programs, 10 cyclic watering plans, and temporary watering from 1 minute to 24 hours. Manual watering via the physical button defaults to 10 minutes. Flexible modes let you handle various garden and plant care scenarios with ease.

��� Rain Delay & Irrigation History Tracking: Avoid overwatering with adjustable rain delay settings (24h, 48h, 72h) or disable as needed. The app records detailed irrigation history, allowing you to track usage and fine-tune watering plans for optimal plant health.

��� Wide Application with Smart Alerts: Suitable for home gardens, lawns, and outdoor irrigation. Operates under 0.1-0.8MPa pressure and 4.5掳C-45掳C temperature. Rated IPX5 waterproof with low battery alerts via call/SMS (paid) or app/phone alerts (free). Ensures uninterrupted operation and timely updates.

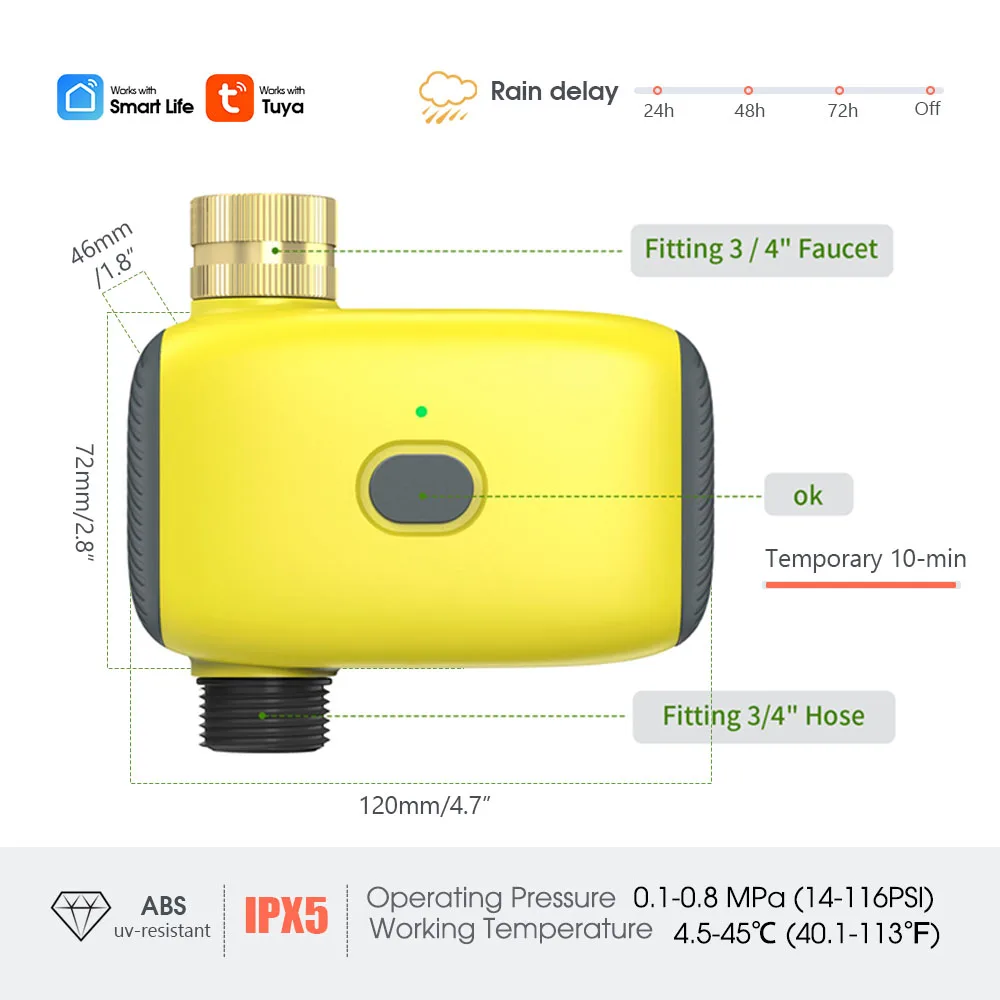

�� Specification:
�� Product Name: N369 Bluetooth Single-Zone Timer.
�� Power Supply: 2 * AA alkaline batteries (NOT included).
�� Communication Protocol: Bluetooth.
�� Material: UV-resistant ABS.
�� Inlet Size: 3/4” thread.
�� Operating Pressure: 0.1~0.8 MPa (14~116 psi).
�� Working Temperature: 4.5掳C~45掳C (40.1掳F~113掳F).
�� Waterproof Rating: IPX5.
�� Usage: For Outdoor or indoor Use.
�� Rain Delay: 24h, 48h, 72h or close.

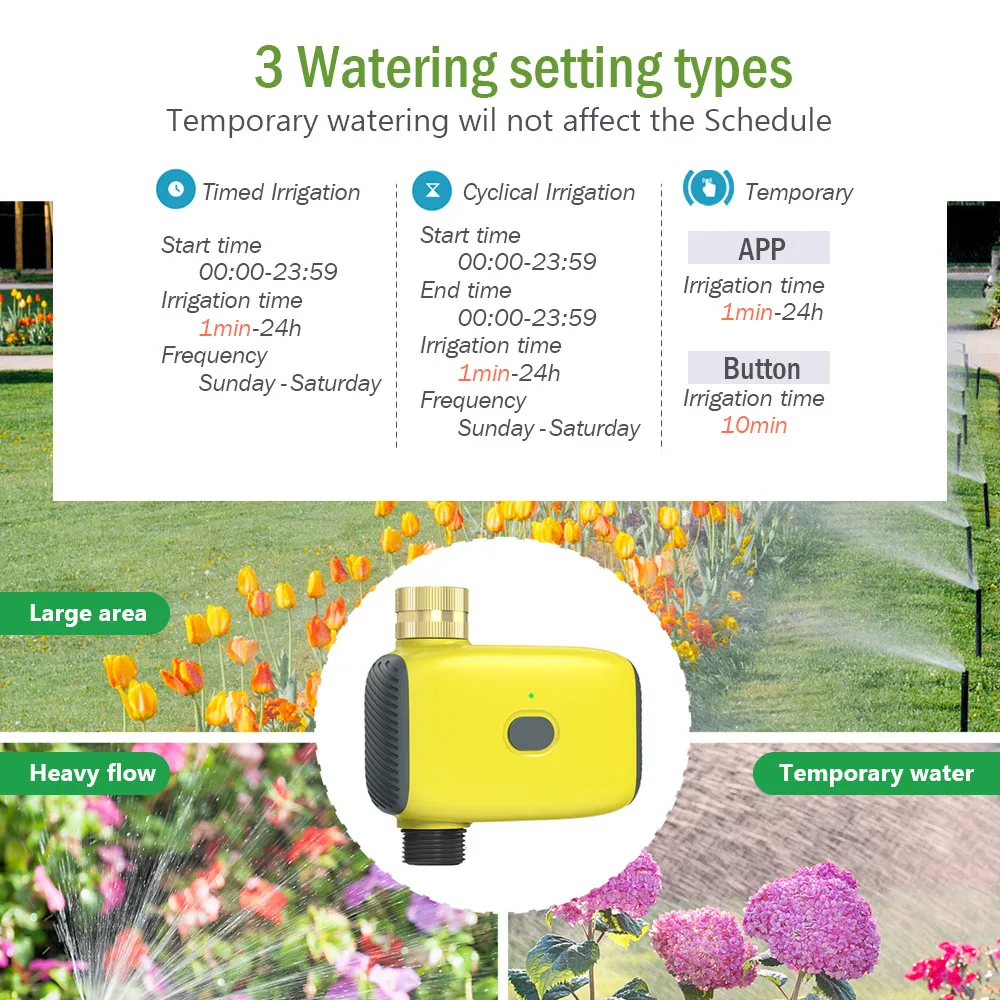

��Single-Zone Setup Information:
�� Temporary Watering: App: 1 min – 24 hrs / Button: 10-min.
�� Programmable Modes: Normal Schedule / Cycle & Soak.
   – Normal Schedule:
     �� Number of Programmable Schedules: Up to 10.
     �� Start Time: 00:00 – 23:59.
     �� Irrigation Duration: 1 min – 24 hrs (Min Unit: 1 min).
     �� Irrigation Frequency: Sunday to Saturday.
   – Cycle & Soak:
     �� Number of Programmable Schedules: Up to 10.
     �� Start Time: 00:00 – 23:59.
     �� End Time: 00:00 – 23:59.
     �� Irrigation Duration: 1 min – 24 hrs (Min Unit: 1 min).
     �� Irrigation Frequency: Sunday to Saturday.
     �� Soak Duration (Pause Time): 1 min – 24 hrs (Min Unit: 1 min).
�� Voice Function: Alexa, Google assiatant.


�� Note:
1. Minimum Water Pressure Requirement:
    �� The solenoid valve requires a minimum operating water pressure of 0.1 MPa (14.5 psi) to function correctly.
    �� Insufficient water pressure may cause the valve to fail to open or only partially open, resulting in little or no water flow.
    �� Do not connect the valve to non-pressurized water sources such as gravity-fed tanks or ton barrels.

2. Operation During Network or Bluetooth Disconnection:
    �� In the event of Bluetooth or network disconnection, the timer will continue to run according to the pre-programmed schedules stored in the app.
    �� Ensure all watering schedules are properly set in advance to avoid interruptions.
    �� Note: Remote control requires a Bluetooth gateway, which is not included in this product listing.

3. Installation and Usage:
    �� Always connect the valve to a pressurized water source.
    �� Avoid installing the device in areas exposed to extreme heat, frost, or prolonged direct sunlight.
    �� Use stable and high-quality batteries to maintain reliable operation and prevent malfunctions.

4. Maintenance and Safety:
    �� Periodically inspect the system for leaks or blockages.
    �� Clean the valve regularly to prevent debris buildup that could impact performance.
    �� Do not disassemble the valve unless absolutely necessary; improper handling may lead to irreversible damage.
